Portable Natural Gas Processing Equipment Natural Gas Dehydration Device

Name: Portable Natural Gas Processing Equipment Natural Gas Dehydration Device
Brand: SCRT
Price: 1 USD

Brand Name : SCRT

Model Number : HZ-TT010

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 100 per month

Delivery Time : 60 days

Packaging Details : Wooden box

Medium : Natural gas

Application : natural gas

Warranty : 18 month

Product name : Molecular sieve dehydration and dehydrocarbonation unit

after sales services : Engineers available to service machinery overseas

Configuration : stationary, portable

Dimension : customized

Color : customized

Contact Now

Molecular sieve dehydration and dehydrocarbonation unit for natural gas

Application:

The molecular seive dehydration and dehydrocabonation unit is applied in removing the water and hydrocarbonation in natural gas.

Description:

The molecular seive dehydration and dehydrocabonation unit combine the process of natural gas freezing and molecular sieve dehydration. Design size 1.5 x 104 m3 / d, load range of 30% ~ 100%, after dehydration of natural gas water dew point in the booster station to a maximum of 2.5 MPa pressure, lower than the minimum transportation environment temperature 5 ℃ and above (molecular sieve enabled, the water dew point control in - 5 ℃)..

Water dew point: after dehydration of natural gas water dew point in the booster station to a maximum of 2.5 MPa pressure, lower than the minimum transportation environment temperature 5 ℃ and above.

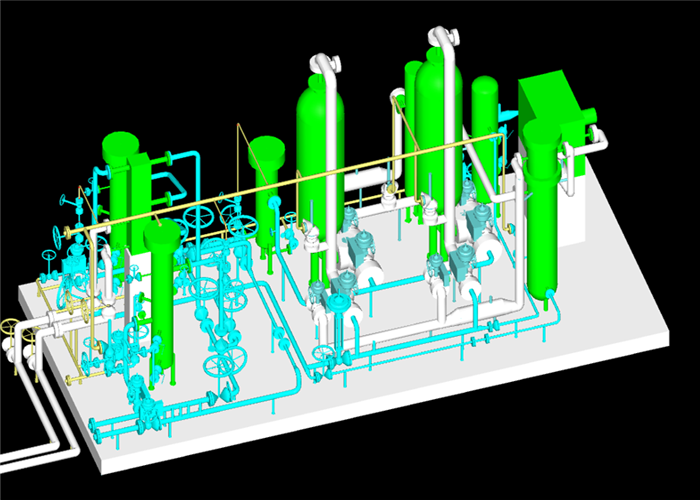

Portable Natural Gas Processing Equipment Natural Gas Dehydration Device

Technical parameters:

	Inlet gas condition
1	Flow	1.5X10⁴ Nm³/d
2	Inlet Pressure	1.6-2.5 MPa
3	Inlet Temperature	5-39 ℃
	Outlet gas condition
4	Flow	0.7-1.5X10⁴ Nm³/d
5	Outlet pressure	1.5-2.4 MPa
6	Outlet temperature	29℃
7	Water dew point	<-5℃
